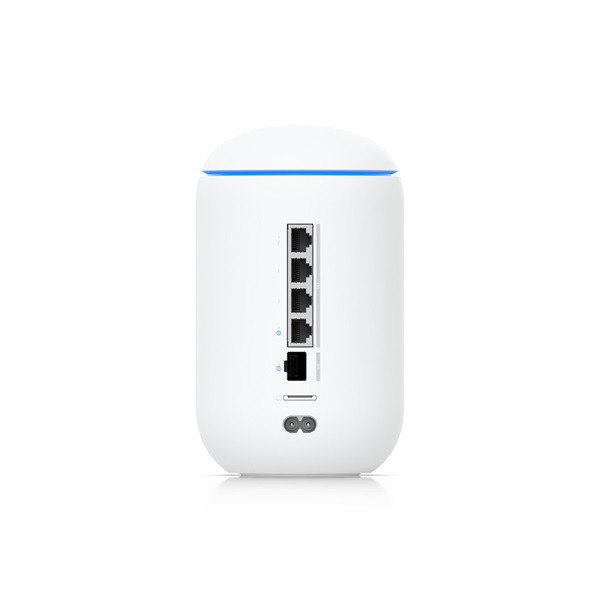

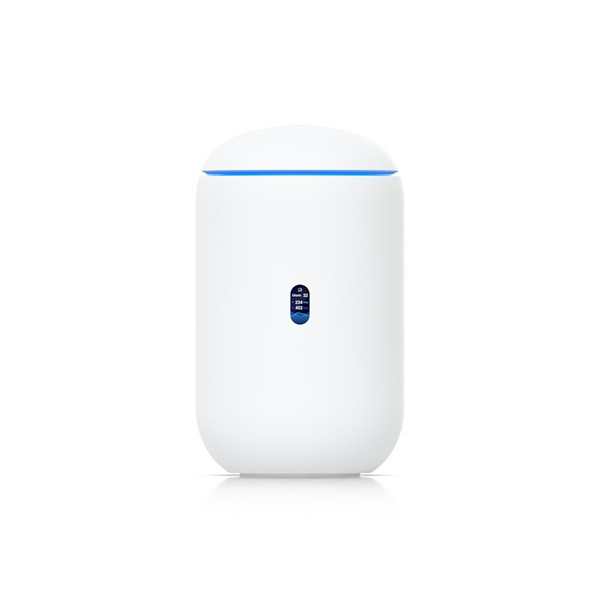

UBiQUiTi Dream Router TriBand 3x2,5Gbps (LAN) 1xPOE Out + 2xWAN (SFP+, RJ45), WiFi7, Asztali - UDR7

Overview

Dimensions

O110 x 184.1 mm (O4.3 x 7.3")

UniFi Application Suite

Network

Yes

Protect

Yes

Access

Yes

Talk

Yes

Connect

Yes

Managed UniFi Devices

30+

Managed Cameras

(5) HD (2) 2K (1) 4K

Simultaneous Users Connected

300+

Default WAN Ports

(1) 10G SFP+ (1) 2.5 GbE RJ45

LAN Ports

(3) 2.5 GbE RJ45 including (1) PoE

IDS/IPS Throughput

2.3 Gbps

Form Factor

Compact desktop

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

Yes

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic

Yes

IPsec

Yes

OpenVPN

Yes

VPN Server

Identity Endpoint One-Click VPN

Yes

Teleport Zero-Configuration VPN

Yes

WireGuard

Yes

OpenVPN

Yes

L2TP

Yes

VPN Client

OpenVPN

Yes

WireGuard

Yes

Networking

Multi-WAN Load Balancing

Yes

Dynamic Routing

OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

MAC Address Table Size

2,000

Policy-based WAN and VPN Routing

Yes

Customizable DHCP Server

Yes

IPv6 ISP Support

Yes

IGMP Proxy

Yes

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz

5.7 Gbps

5 GHz

4.3 Gbps

2.4 GHz

688 Mbps

MIMO

6 GHz

2 x 2 (DL/UL MU-MIMO)

5 GHz

2 x 2 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz

6 dBi

5 GHz

7 dBi

2.4 GHz

5 dBi

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

4 per Radio

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

NVR Storage

Pre-installed 64GB microSD for NVR

Expansion Slot

MicroSD Card

PoE Budget

15.4W

Max. PoE Wattage per Port by PSE

PoE

15.4W

Voltage Range PoE Mode

44-57V

Max. Power Consumption

26W (Excluding PoE output)

Power Method

Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply

AC/DC, Internal, 50W

Max. TX Power

6 GHz

24 dBm

5 GHz

26 dBm

2.4 GHz

23 dBm

Supported Voltage Range

100-240V AC

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

Weight

1.1 kg (2.4 lb)

Enclosure Material

Polycarbonate

LCM Display

0.96" status display

Management

Ethernet Bluetooth

LEDs

System

Yes

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Button

(1) Factory-reset

Software

VLAN

802.1Q

Guest Traffic Isolation

Yes

Application Requirements

UniFi Network

Version 9.0.108 and later
