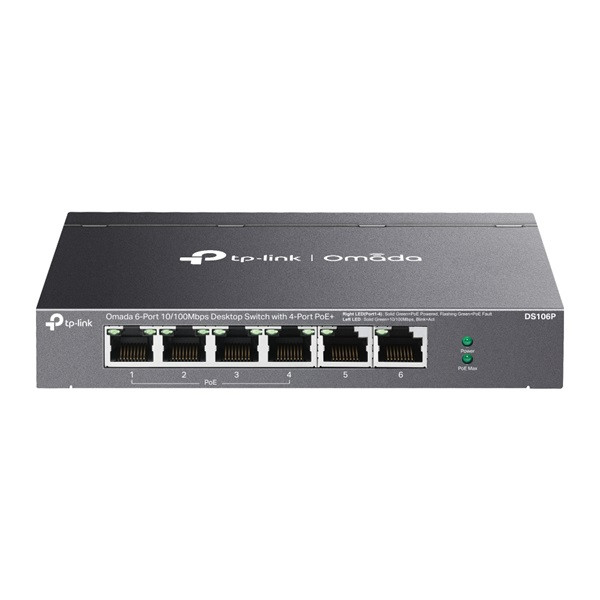

TP-LINK Switch 6x100Mbps(4xPOE+) Fémházas (Omada), DS106P
Cikkszám:
CH-356532
TP-LINK Switch 6x100Mbps(4xPOE+) Fémházas (Omada), DS106P
Ár: 31 131 Ft (24 513 Ft+ÁFA)
Hasonló termékek
Részletek
| HARDWARE FEATURES | |
|---|---|
| Interface | • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100? STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| Packet Forwarding Rate | 0.8928 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.2 Gbps |
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Max Power Consumption | • 2.52 W (220 V / 50 Hz, no PD connected) • 75.4 W (220 V / 50 Hz, with 67 W PD connected) |
| Max Heat Dissipation | • 8.59 BTU/h(no PD connected) • 257.11 BTU/h(with 67 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4 • Priority Mode: Ports 1–2 • PoE Auto Recovery: Ports 1-4 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • DS106P • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Adatok
Portok száma:
6
Menedzselhetőség:
Nem menedzselhető
Menedzselhető:
Nincs
Listaár:
24 905 HUF
Garancia:
60 hónap
EAN:
4895252507669
Gyártói cikkszám:
DS106P
Rack-be szerelhető:
Nincs
EAN:
4895252507669
Garancia (hónap):
60
Termék gyártója:
TP-LINK
Switch típus:
Fixed port
Port típusa:
100 Mbps
Switching kapacitás:
1,2
PoE (Power over Ethernet):
Van
Áteresztő képesség:
0,8928
Tömeg:
880 g/db
