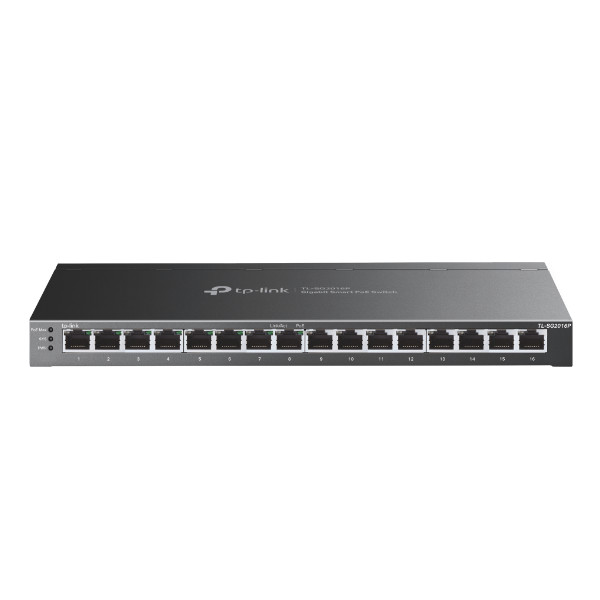

TP-LINK Switch 16x1000Mbps (8xPOE+), Fémházas Asztali Menedzselhető, SG2016P

TP-LINK Switch 16x1000Mbps (8xPOE+), Fémházas Asztali Menedzselhető, SG2016P
Ár: 108 617 Ft (85 525 Ft+ÁFA)
A vásárlás után járó pontok: 1 086 Ft
Szállítási idő
:
1-3 munkanap
Nem kérek plusz szolgáltatást
Rendelésed Anett csomagolja, ha teheted hívd meg egy sütire :) +590 Ft / db
db Kosárba Kosárba
TP-LINK Switch 16x1000Mbps (8xPOE+), Fémházas Asztali Menedzselhető, SG2016P
Részletek Hasonló termékek Adatok Vélemények
  • HARDWARE FEATURES
    Standards and Protocols IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
    Interface • 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
    • Auto-Negotiation/Auto MDI/MDIX
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
    Fan Quantity Fanless
    Power Supply • External Power Adapter (Output: 53.5 VDC/ 1.31 A)
    PoE Ports (RJ45) • Standard: 802.3af/at compliant
    • PoE Ports: 8 Ports
    • Power Supply: 120 W*
    Dimensions ( W x D x H ) 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
    Max Power Consumption 146.5 W (110 V/60 Hz) (with 120 W PD connected)
    Max Heat Dissipation 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)
    PERFORMANCE
    Bandwidth/Backplane 16 Gbps
    MAC Address Table 8k
    Packet Buffer Memory 4.1 Mbit
    Jumbo Frame 9 KB
    SOFTWARE FEATURES
    Quality of Service • 802.1p CoS/DSCP priority
    • 8 priority queues
    • Priority Schedule Mode
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    • Queue Weight Config
    • Bandwidth Control
    - Port/Flow-based Rating Limit
    • Smoother Performance
    • Storm Control
    - Multiple Control Modes(kbps/ratio)
    - Broadcast/Multicast/Unknown-Unicast Control
    L2 and L2+ Features • DHCP Relay
    - DHCP VLAN Relay
    • DHCP L2 Relay
    • Link Aggregation
    - Static link aggregation
    - 802.3ad LACP
    - Up to 8 aggregation groups and up to 8 ports
    per group
    • Spanning Tree Protocol
    - 802.1D STP
    - 802.1w RSTP
    - 802.1s MSTP
    - STP Security: TC Protect, BPDU Filter/Protect,
    Root Protect
    • Loopback Detection
    • Flow Control
    - 802.3x Flow Control
    • Mirroring
    - Port Mirroring
    - CPU Mirroring
    - One-to-One
    - Many-to-One
    - Flow-Based
    - Ingress/Egress/Both
    • Device Link Detect Protocol (DLDP)
    • 802.1ab LLDP/ LLDP-MED
    L2 Multicast • 511 IPv4, IPv6 shared multicast groups
    • IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Fast Leave
    - IGMP Snooping Querier
    - Static Group Config
    • Multicast VLAN Registration (MVR)
    • Multicast Filtering
    • MLD Snooping
    - MLD v1/v2 Snooping
    - Fast Leave
    - MLD Snooping Querier
    - Static Group Config
    • Limited IP Multicast (256 profiles and 16 entries per profile)
    IPv6 Support • IPv6 Dual IPv4/IPv6
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP)
    version 6
    • TCPv6/UDPv6
    • IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet (v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    VLAN • VLAN Group
    - Max. 4K VLAN Groups
    • 802.1Q tag VLAN
    • MAC VLAN: 12 Entries
    • Protocol VLAN
    • GVRP
    • Voice VLAN
    Access Control List • Support up to 230 entries
    • Time-Range
    - Time Slice
    - Week Time-Range
    - Absolute Time-Range
    - Holiday
    • Time-based ACL
    • MAC ACL
    - Source MAC
    - Destination MAC
    - VLAN ID
    - User Priority
    - Ether Type
    • IP ACL
    - Source IP
    - Destination IP
    - IP Protocol
    - TCP Flag
    - TCP/UDP Source Port
    - TCP/UDP Destination Port
    - DSCP/IP TOS
    • IPv6 ACL
    • Combined ACL
    • Rule Operation
    - Permit/Deny
    • Policy Action
    - Mirror
    - Rate Limit
    - Redirect
    - QoS Remark
    • ACL Rules Binding
    - Port Binding
    - VLAN Binding
    • Actions for flows
    - Mirror (to supported interface)
    - Redirect (to supported interface)
    - Rate Limit
    - QoS Remark
    Security • AAA
    • 802.1X
    - Port-based authentication
    - MAC (Host) based authentication
    - Authentication Method includes PAP/EAP-MD5
    - MAB
    - Guest VLAN
    - Support Radius authentication and
    accountability
    • IP/IPv6-MAC Binding
    - 512 Binding Entries
    - DHCP Snooping
    - DHCPv6 Snooping
    - ARP Inspection
    - ND Detection
    • IP Source Guard
    - 253 Entries
    - Source IP+Source MAC
    • IPv6 Source Guard
    - 183 Entries
    - Source IPv6 Address+Source MAC
    • DoS Defend
    • Static/Dynamic/Permanent Port Security
    - Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control
    - kbps/ratio control mode
    • Port Isolation
    • Secure web management through HTTPS with
    SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI)
    management with SSHv1/SSHv2
    • IP/Port/MAC-based access control
    Advanced Features • Automatic Device Discovery
    • Batch Configuration
    • Batch Firmware Upgrading
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    MIBs • MIB II (RFC1213)
    • Bridge MIB (RFC1493)
    • P/Q-Bridge MIB (RFC2674)
    • Radius Accounting Client MIB (RFC2620)
    • Radius Authentication Client MIB (RFC2618)
    • Remote Ping, Traceroute MIB (RFC2925)
    • Support TP-Link private MIBs
    • RMON MIB(RFC1757, rmon 1,2,3,9)
    MANAGEMENT
    Omada App Yes, through
    • Omada Cloud-Based Controller
    • OC300
    • OC200
    • Omada Software Controller
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud Access Yes, through
    • Omada Cloud-Based Controller
    • OC300
    • OC200
    • Omada Software Controller
    Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
    Management Features • Web-based GUI
    • Command Line Interface (CLI) through telnet
    • SNMPv1/v2c/v3
    • SNMP Trap/Inform
    • RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • SNTP
    • System Log
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • TL-SG2016P
    • Power Adapter
    • Installation Guide
    • Rubber Feet
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
    Environment • Operating Temperature: 0–40 ? (32–104 ?);
    • Storage Temperature: -40–70 ? (-40–158 ?)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
  • Portok száma
    16
    Menedzselhetőség
    Teljes
    Menedzselhető
    Van
    Listaár
    86 893 HUF
    Gyártó
    TP-LINK
    Garancia
    60 hónap
    Gyártó
    TP-LINK
    EAN
    4897098689493
    Gyártói cikkszám
    SG2016P
    Rack-be szerelhető
    Van
    EAN
    4897098689493
    Garancia (hónap)
    60
    Termék gyártója
    TP-LINK
    Switch típus
    Fixed port
    PoE (Power over Ethernet)
    Van
    Cikkszám
    CH-332251
    Tömeg
    1 kg/db
