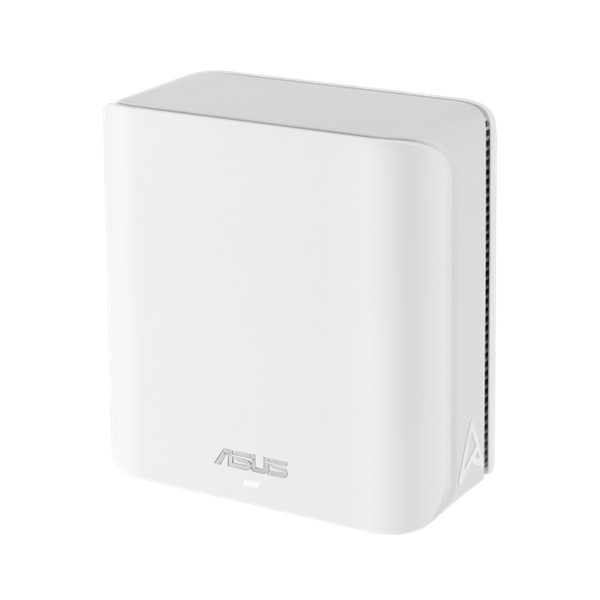

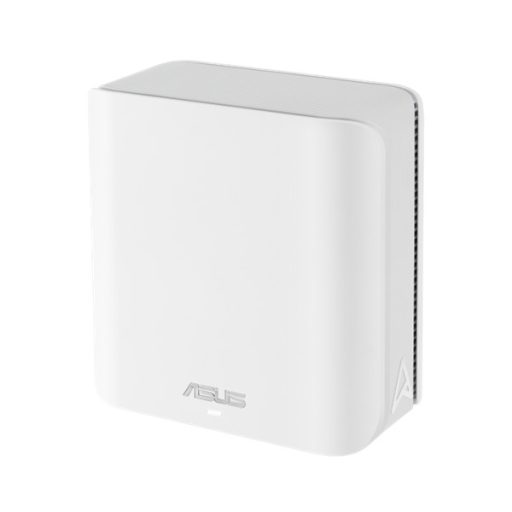

ASUS Wireless ZenWifi Mesh Networking system BE3600, BD4(W-1-PK)

Model

ASUS ZenWiFi BD4

Model Name

BD4(W-1-PK)
BD4(B-1-PK)
BD4(B-3-PK)
BD4(W-2-PK)
BD4(B-2-PK)
BD4(W-3-PK)

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6

WiFi Data Rate

WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

Antenna

Internal antennas x 4

Transmit / Receive

2.4GHz 2x2
5GHz 2x2

Processor

1.5GHz quad-core processor

Memory

RAM 512MB , Flash 128MB

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4 GHz
5 GHz

Operating Mode

Wireless Router Mode
AiMesh Node Mode
Access Point Mode

I/O Ports

2.5G x 2 (WAN/LAN auto detecting)

Buttons

WPS button, Reset button, Power switch

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max 1.5A current

Package Content

ZenWiFi BD4
RJ45 cable
Power adapter
Warranty card
Quick start guide

Product Dimensions

140 x 70 x 140 mm

Remark

Content may vary in different regions and packages.

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Reward
Parental Control - Safe Browsing
Customized Internet Schedule

Router APP

APP: ASUS Router APP

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."
Support Guest Network

Security

AiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
Security Scan
Firewall

AiProtection

AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
Traditional QoS
Traffic Monitor
Traffic Analyzer
• Website History

WAN

Port Forwarding
Port Triggering
DMZ
DDNS

LAN

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)

Wireless

MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

Administration

Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update

Smart Home

Support Google Assistant
