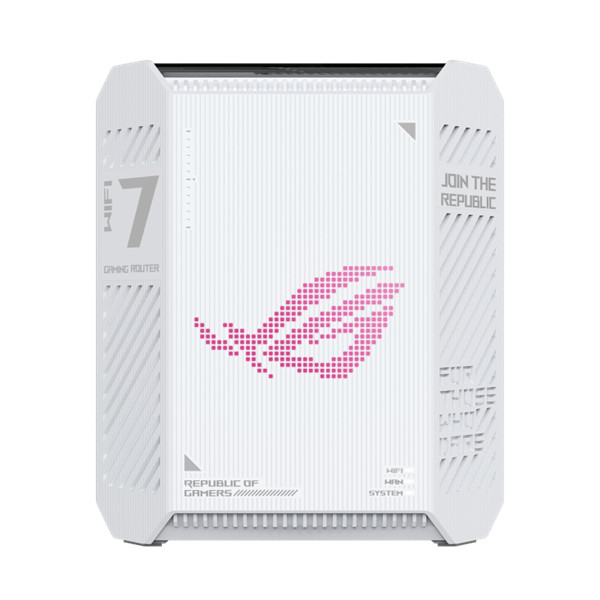

ASUS Wireless Router Dual Band BE7200 1xWAN(2.5Gbps) + 4xLAN(2.5Gbps), ROG STRIX GS-BE7200
Model Name
GS-BE7200
Design
White
Network Standard
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6
Product Segment
BE7200 ultimate BE performance : 1376+5764 Mbps
WiFi Data Rate
2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5GHz BE: 5x5 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps
Antenna
internal antenna x 6
Transmit / Receive
2.4GHz 4x4
5GHz 5x5
Processor
2.0GHz quad-core processor
Memory
128 MB Flash
DDR4 1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

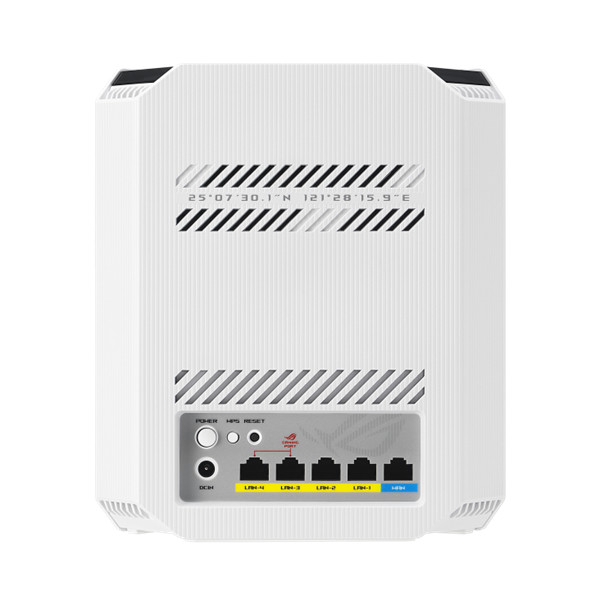

I/O Ports
1 x 2.5G for WAN
4 x 2.5G for LAN
Buttons
Power, WPS, Reset
LED Indicator
WiFi
WAN
SYSTEM
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 2.5A current
Package Content
WiFi7 Dual-Band router
ROG RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Dimensions
182.3 x 80 x 207 mm
AiMesh
• Primary AiMesh Router
• AiMesh Node
Game
Game Boost / Acceleration
Mobile Game Mode
Gear Accelerator
ROG_First
OpenNAT (Game Profile)
Gaming Port
Gaming Network
Parental Control
"Allow you to block access to unwanted websites and apps."
Time Scheduling
Reward
Parental Control Customized Internet Schedule
• Maximum Parental Control Profile : 64
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Support Guest Network
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal
Security
AiProtection
VPN
WiFi Encryption : WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection
• Router Security Assessment
• Malicious Site Blocking
• Advertisement Blocking
• Tracker Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
Adaptive QoE
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
NAT Passthrough : NAT Passthrough :
NAT Passthrough : • PPTP Pass-Through
NAT Passthrough : • L2TP Pass-Through
NAT Passthrough : • IPSec Pass-Through
NAT Passthrough : • RTSP Pass-Through
NAT Passthrough : • H.323 Pass-Through
NAT Passthrough : • SIP Pass-Through
NAT Passthrough : • PPPoE Relay
LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
Wireless
MU-MIMO
User Interface
WEB: ASUSWRT
APP: ASUS Router APP
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
