ASUS Wireless Router Dual Band BE5000 1xWAN(2.5Gbps) + 1xLAN(2.5Gbps) + 3xLAN(1000Mbps), PRT-BE5000

Model

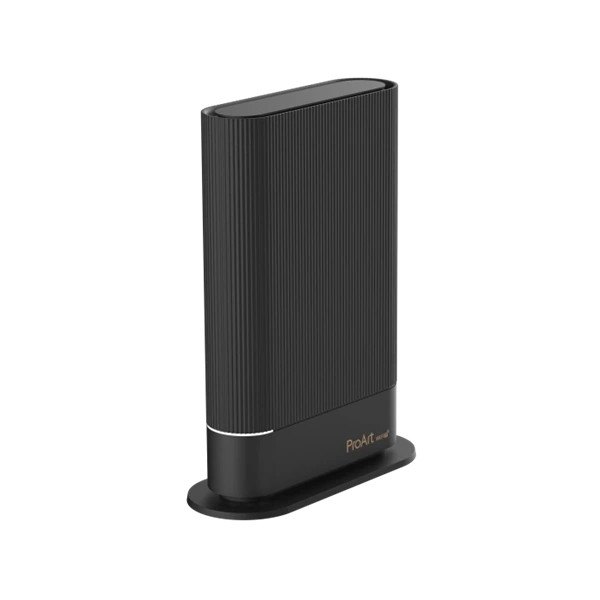

ProArt Router PRT-BE5000

Network Standard

IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment

BE5000 ultimate BE performance : 688+4320 Mbps

WiFi Data Rate

WiFi 7 (802.11be) (5GHz): up to 4320 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Antenna

5*Internal Antennas (2*2.4GHz + 3*5GHz )

Transmit / Receive

5GHz 3x3
2.4GHz 2x2

Processor

2.0 GHz quad-core processor

Memory

128 MB Flash
1 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

5 GHz
2.4 GHz

Operating Mode

Wireless router mode
AiMesh node mode

I/O Ports

1x 2.5G for WAN,
1x 2.5G for LAN,
3 x 1G LAN

Buttons

WPS Button, Reset Button, Power Button

LED Indicator

Power & Status Combo LED x 1

Power Supply

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current

Package Content

PRT-BE5000
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g)

503.7 g

Product Dimensions

131 x 37.5 x 200 mm

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Parental Control

Time Scheduling, Safe Browsing, Customized Internet Schedule

Security

AiProtection, VPN, WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection

AiProtection, • Router Security Assessment, • Malicious Site Blocking

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard

Traffic Control

Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address

Wireless

MU-MIMO, WiFi MAC Address Filter

User Interface

WEB: ASUSWRT, APP: ASUS Router APP

Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
