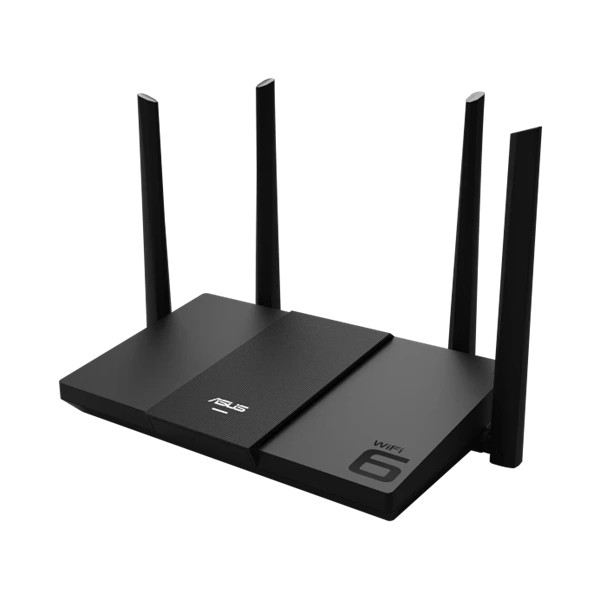

ASUS Wireless Router Dual Band AX3000 1xWAN(1000Mbps) + 3xLAN(1000Mbps), RT-AX50

Model

RT-AX50

Network Standard

IPv6
IPv4
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

Product Segment

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

WiFi Data Rate

WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
802.11g : up to 54 Mbps
802.11b : up to 11 Mbps
802.11a : up to 54 Mbps

Antenna

External antenna x 4

Transmit / Receive

5GHz 2x2
2.4GHz 2x2

Processor

1.3GHz dual-core processor

Memory

128 MB Flash
256 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Operating Mode

Access Point, AiMesh Node, Repeater, Router

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

Buttons

WPS Button, Reset Button

LED Indicator

Status x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1 A current

Package Content

.RT-AX50
.RJ45 Ethernet Cable
.Power Adapter
.Quick Start Guide
.Warranty Card

Product Weight (g)

353g

Product Dimensions

261 x 156 x 46 mm (WxDxH)

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Parental Control

Customized Internet Schedule

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."

Security

Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, SSH, Firewall

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP

Traffic Control

• Bandwidth Limiter, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, Port triggering, DMZ, DDNS

LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL)

Wireless

UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log
